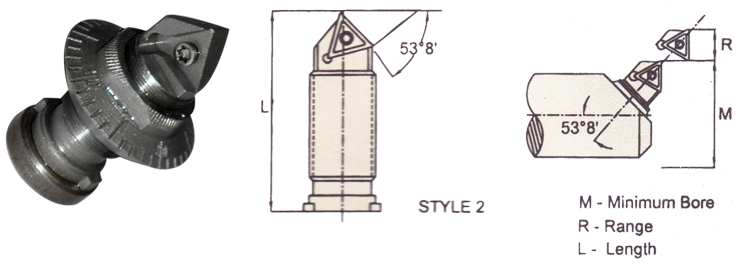

ANGULAR MOUNTED INDEXABLE INSERT TYPE CARTRIDGES ( ' T ' TYPE )
| ANGULAR MOUNTED INDEXABLE INSERT TYPE CARTRIDGES ( ' T ' TYPE ) | ||||||||||
 |
||||||||||
| Boring Bar Size | Range | Cartridge Size | M | R | L | Insert Type | Torx Key | Insert Screw | Make of Insert | |
| Min | Max | |||||||||
| BCA23 | 23 | 29 | M3 B2 T | 23 | 3.2 | 21.4 | TCMT 06 T1 04 | T6 | 5513020-28 | SANDVIK |
| BCA29 | 29 | 41 | M3 A2 T | 26.2 | 6.4 | 25.4 | ||||
| BCA38 | 38 | 49 | M5 B2 T | 37.3 | 5.6 | 33.3 | TCMT 110204 | T8 | 21480800 | WIDIA |
| BCA46 | 46 | 66 | M5 A2 T | 42.9 | 10.3 | 39.7 | ||||
| BCA62 | 62 | 87 | M7 A2 T | 58.7 | 12.7 | 56.1 | TCMT 110204 OR TCMT 160408 | T8 OR T15 | 21480800 OR 21480388 | WIDIA |
| BCA83 | 83 | 108 | ||||||||
| BCA98 & Above | 98 | Any | M10 A2 T | 78.6 | 22.2 | 76.2 | TCMT 160408 | T15 | 21480388 | WIDIA |
